SKU:
313537
ODL Impact Resistant Door Glass - Waterside - 24" x 66" Frame Kit
$2,475.03
Unit price
/
Unavailable
24" x 66"
Built to order in 2-4 weeks
Highlights
Highlights
• Handcrafted decorative glass.
• Natural, free-flowing glass movements.
• Glass Privacy Level Rating: 8
• Impact resistant glass designed for strength in severe weather conditions.
• Door Glass Panels are thermally sealed for air tight and water tight performance.
• 20 year glass seal warranty.
• Natural, free-flowing glass movements.
• Glass Privacy Level Rating: 8
• Impact resistant glass designed for strength in severe weather conditions.
• Door Glass Panels are thermally sealed for air tight and water tight performance.
• 20 year glass seal warranty.
ODL Impact Resistant Door Glass - Waterside - 24" x 66" F...
$2,475.03
Unit price
/
Unavailable
Description
Description

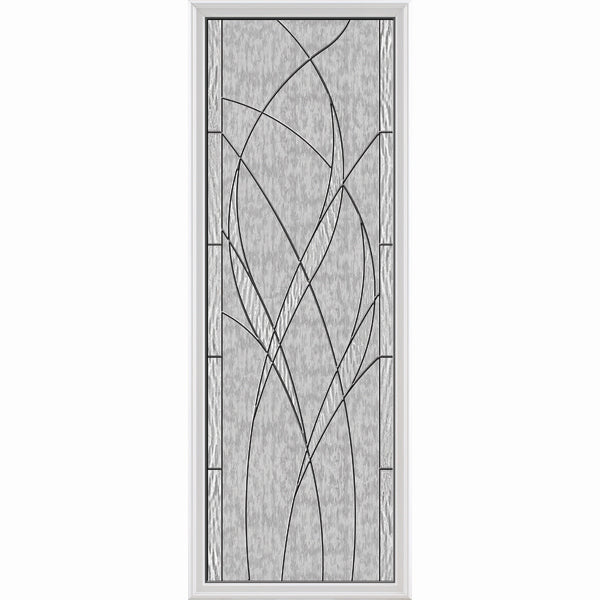

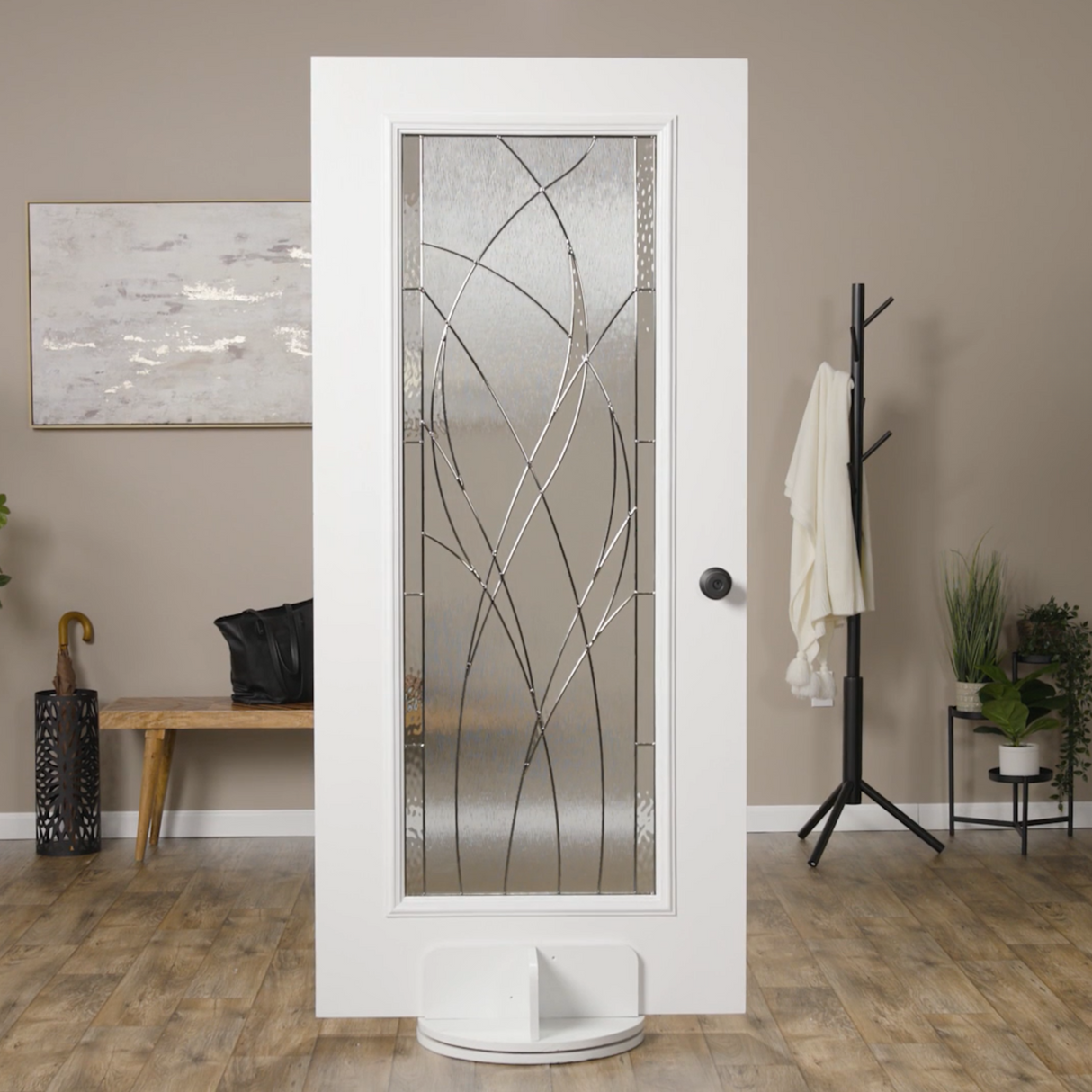

ODL Destinations Waterside Door Glass
Destinations door glass for entry doors makes coming home just a little nicer. Home is the place you want to be, your favorite destination.
Waterside is a natural, free-flowing design that conjures the feeling of movement of water or grasses swaying in the breeze. Waterside offers a high level of privacy to your front door or entryway.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer powder coated aluminum frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" and 30" (+/- 0.75")
Door Height**: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Frame Kit Width: 24" (+/- 0.25")
Frame Kit Height: 66" (+/- 0.25")
**This kit will also work for an 8'0" door with an existing frame measuring 24"x66".
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" (+/- 0.75")
Door Height*: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Door Panel: 6 Panel Door, 4 Panel Door, 12 Panel Door, 9 Panel Door, 3 Panel Door, and Flush Door
Door Panel Width: 23" (+/- 0.5")
Door Panel Height: 65" (+/- 0.5")
*This kit will work with a 6 panel, 8'0" door for adding glass.
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Full Light (6'8 Doors)
Three Quarter Light (8'0" Doors)
Destinations door glass for entry doors makes coming home just a little nicer. Home is the place you want to be, your favorite destination.
Waterside is a natural, free-flowing design that conjures the feeling of movement of water or grasses swaying in the breeze. Waterside offers a high level of privacy to your front door or entryway.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer powder coated aluminum frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" and 30" (+/- 0.75")
Door Height**: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Frame Kit Width: 24" (+/- 0.25")
Frame Kit Height: 66" (+/- 0.25")
**This kit will also work for an 8'0" door with an existing frame measuring 24"x66".
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" (+/- 0.75")
Door Height*: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Door Panel: 6 Panel Door, 4 Panel Door, 12 Panel Door, 9 Panel Door, 3 Panel Door, and Flush Door
Door Panel Width: 23" (+/- 0.5")
Door Panel Height: 65" (+/- 0.5")
*This kit will work with a 6 panel, 8'0" door for adding glass.
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Full Light (6'8 Doors)
Three Quarter Light (8'0" Doors)
+ Read More
Guaranteed Fit Program
Guaranteed Fit Program
In a perfect world, everything fits right – the first time. You can achieve this enlightened state of mind with Zabitat’s Risk-Free Fit Guarantee. Submit the requested information and a photo or two of your application (front door, slider, etc.). Our trained experts will review your submission within 1 business day. If everything is copacetic, you will receive a verification for fit. If your product selection won’t work with your application, you will receive a response with new product recommendations or other options.
Moral of the story is, "Measure twice, order once!". In the rare event that a Zabitat expert gets it wrong you are guaranteed a full refund or an exchange if the proper size unit is available, and return shipping fees are on us. *Please note, we are unable to guarantee a fit for arch (rounded) glass.
Specifications
Specifications
- Category: Severe Weather Door Glass
- Door Cut-Out Dimensions: 23 in. x 65 in.
- Energy Efficient: Yes
- Frame Kit Size: 24 in. x 66 in.
- Frame Light Pattern: 1 Light
- Frame Type: Severe Weather Aluminum
- Glass Insulation: Triple Pane
- Glass Panel Thickness: 1 Inch
- Glass Size: 22 in. x 64 in.
- Impact Resistant: Yes
- Manufacturer: ODL, Inc.
- Privacy Rating: 8
- Product Weight (lbs.): 84
- Tempered Safety Glass: Yes
- Warranty: 20 Year Glass Seal Warranty
- Glass Style: Contemporary
