SKU:
F2450D6

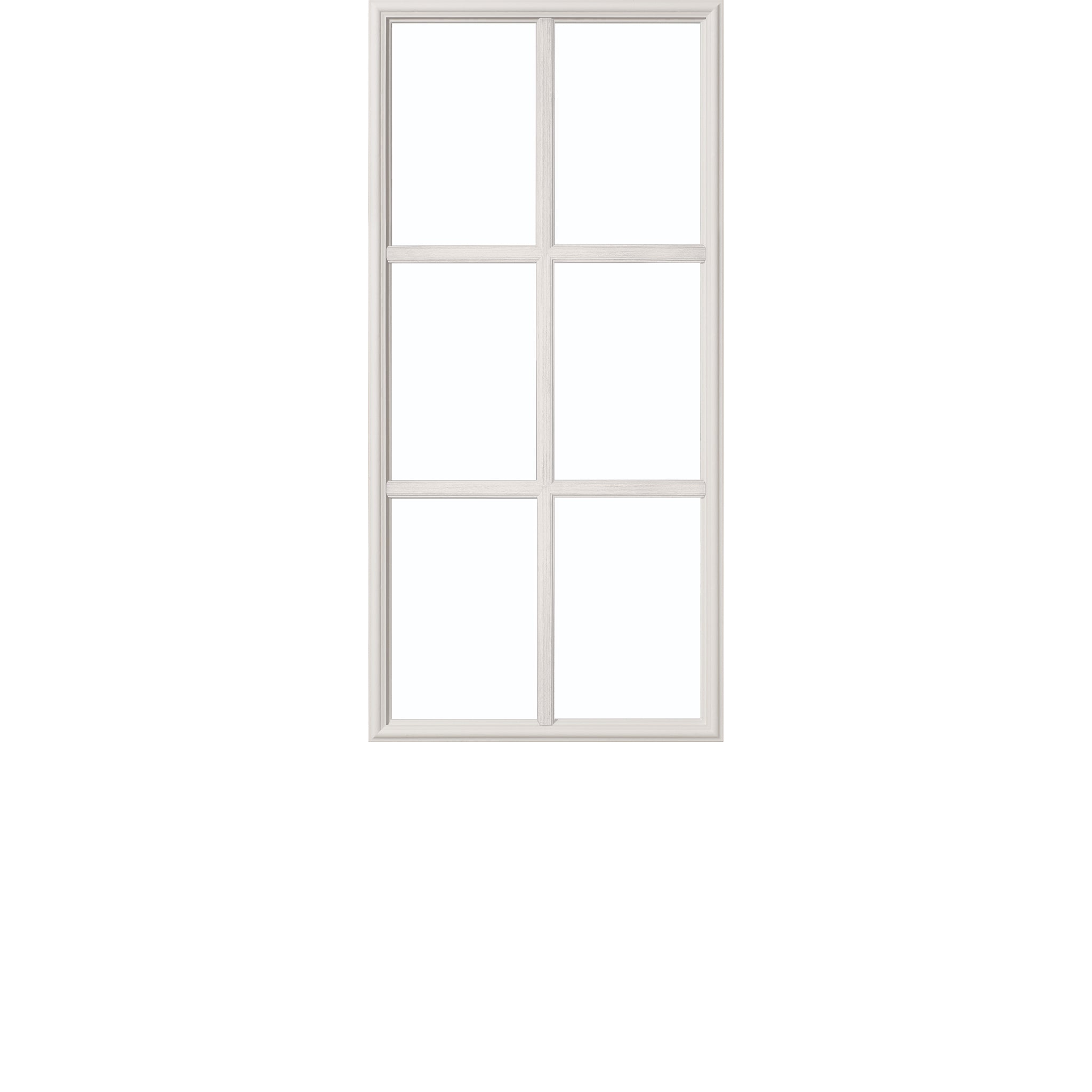

6 Light Replacement Frame Set (glass not included)
$187.87
Unit price
/
Unavailable
Typically ships in 7-10 business days
Highlights
Highlights
• Textured, maintenance free plastic
• Will not yellow from heat or sun
• Will not yellow from heat or sun
• Includes 1 piece molded outer frame (pre-caulked) and 1 piece molded inner frame
• Select for use with installed 1/2" or 1" thick door glass
• Select for use with installed 1/2" or 1" thick door glass
• Available in white and tan (recommended if you are going to stain your frames) - both colors are paintable
• Modern flat profile available (for 1" thick glass and white frames only)
• For use with door thickness of 1-3/4"
6 Light Replacement Frame Set (glass not included)
$187.87
Unit price
/
Unavailable
Description
Description
Replacement Frame Set
If you still love the look of your existing door glass, but need to replace the frame, we’re happy to offer replacement frames. Each replacement frame set contains 1 inner and 1 outer high performance, molded plastic frame, 1 pack of specially designed screws and 1 pack of screw covers. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides frame set dimensions:
Replacing Frame Set
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” and 30” (+/- 0.75”)
Door Height**: 6’8” and 7’0” (+/- 0.75”)
Door Thickness: 1.75”
Frame Kit Width: 24” (+/- 0.25”)
Frame Kit Height: 50” (+/- 0.25”)
**This kit will work for an 8’0” door with an existing frame measuring 24”x 50”.
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
If you still love the look of your existing door glass, but need to replace the frame, we’re happy to offer replacement frames. Each replacement frame set contains 1 inner and 1 outer high performance, molded plastic frame, 1 pack of specially designed screws and 1 pack of screw covers. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides frame set dimensions:
Replacing Frame Set
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” and 30” (+/- 0.75”)
Door Height**: 6’8” and 7’0” (+/- 0.75”)
Door Thickness: 1.75”
Frame Kit Width: 24” (+/- 0.25”)
Frame Kit Height: 50” (+/- 0.25”)
**This kit will work for an 8’0” door with an existing frame measuring 24”x 50”.
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
+ Read More
Guaranteed Fit Program
Guaranteed Fit Program
This product is not currently eligible for the Guaranteed Fit Program.
Specifications
Specifications
- Manufacturer: Western Reflections
- Category: Door Glass Frames
- Frame Type: Evolve High Performance Plastic
- Frame Kit Size: 24 in. x 50 in.
- Door Cut-Out Dimensions: 23 in. x 49 in.
- Glass Size: 22 in. x 48 in.
- Door Thickness: 1-3/4 in.
- Energy Efficient: No
- Frame Light Pattern: 1 Light
- Glass Panel Thickness: 1/2 Inch
- Impact Resistant: No
- Light Pattern: 1 Light
- Glass Shape: Rectangle
- STC Rating: n/a
- Product Weight (lbs.): 6.42
