ODL Impact Resistant Mistify White Low-E Door Glass - 24" x 66" Frame Kit
$1,398.83
Unit price
/
Unavailable
24" x 66"
Built to order in 2-4 weeks
Highlights
Highlights
• Handcrafted decorative glass.
• Designed for security, engineered for strength, theft resistant.
• Sealed between impact-resistant laminated glass on the exterior, and tempered safety glass on the interior.
• Glass Privacy Level Rating: Low.
• Energy Efficient Low-E Glass.
• Panels are thermally sealed for air and water-tight performance.
• 20 year glass seal warranty.
• Designed for security, engineered for strength, theft resistant.
• Sealed between impact-resistant laminated glass on the exterior, and tempered safety glass on the interior.
• Glass Privacy Level Rating: Low.
• Energy Efficient Low-E Glass.
• Panels are thermally sealed for air and water-tight performance.
• 20 year glass seal warranty.
ODL Impact Resistant Mistify White Low-E Door Glass - 24" x 66...
$1,398.83
Unit price
/
Unavailable
Description
Description

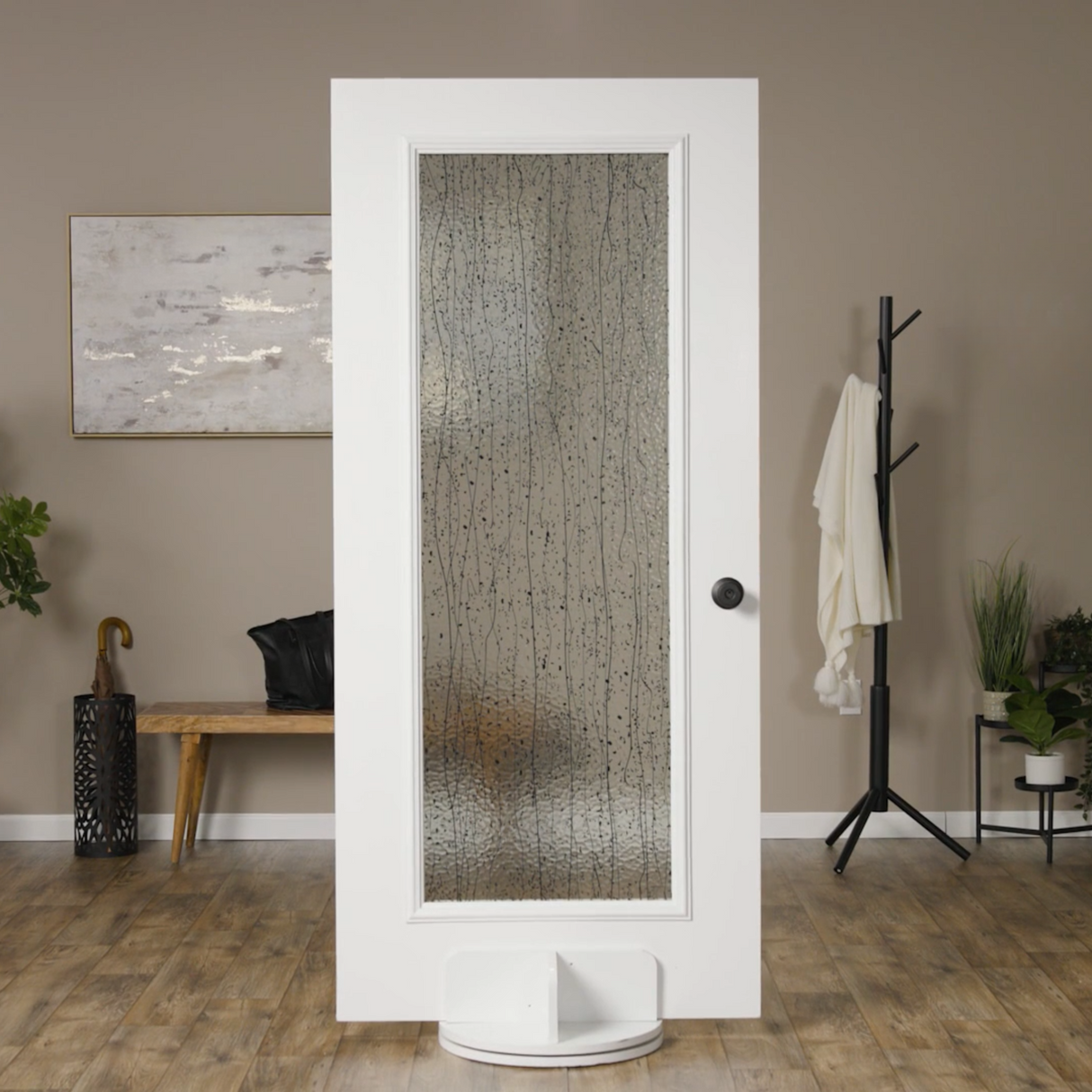

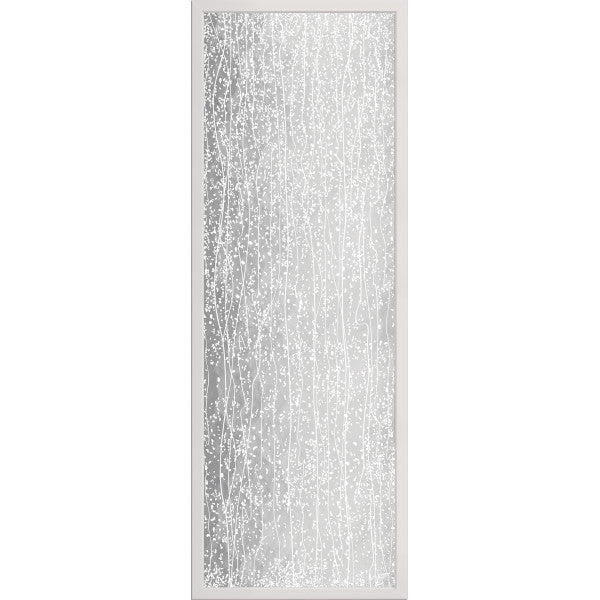

Mistify White Door Glass
A playful combination of pattern and texture, the white drizzle pattern of Mistify is fused to softly textured glass, resulting in a mesmerizing statement piece for any modern entryway and privacy for the home.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer powder coated aluminum frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, and 32” (+/- 0.75”)
Door Height**: 6’8” and 8’0” (+/- 0.75”)
Door Thickness: 1.75”
Frame Kit Width: 24” (+/- 0.25”)
Frame Kit Height: 66” (+/- 0.25”)
**This kit will also work for an 8’0” door with an existing frame measuring 24”x66”.
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” (+/- 0.75”)
Door Height*: 6’8” and 8’0” (+/- 0.75”)
Door Thickness: 1.75”
Door Panel: 6 Panel Door, 4 Panel Door, 12 Panel Door, 9 Panel Door, 3 Panel Door, and Flush Door
Door Panel Width: 23” (+/- 0.5”)
Door Panel Height: 65” (+/- 0.5”)
*This kit will work with a 6 panel, 8’0” door for adding glass.
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Full Light (6’8 Doors)
Three Quarter Light (8’0” Doors)
A playful combination of pattern and texture, the white drizzle pattern of Mistify is fused to softly textured glass, resulting in a mesmerizing statement piece for any modern entryway and privacy for the home.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer powder coated aluminum frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, and 32” (+/- 0.75”)
Door Height**: 6’8” and 8’0” (+/- 0.75”)
Door Thickness: 1.75”
Frame Kit Width: 24” (+/- 0.25”)
Frame Kit Height: 66” (+/- 0.25”)
**This kit will also work for an 8’0” door with an existing frame measuring 24”x66”.
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” (+/- 0.75”)
Door Height*: 6’8” and 8’0” (+/- 0.75”)
Door Thickness: 1.75”
Door Panel: 6 Panel Door, 4 Panel Door, 12 Panel Door, 9 Panel Door, 3 Panel Door, and Flush Door
Door Panel Width: 23” (+/- 0.5”)
Door Panel Height: 65” (+/- 0.5”)
*This kit will work with a 6 panel, 8’0” door for adding glass.
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Full Light (6’8 Doors)
Three Quarter Light (8’0” Doors)
+ Read More
Guaranteed Fit Program
Guaranteed Fit Program
In a perfect world, everything fits right – the first time. You can achieve this enlightened state of mind with Zabitat’s Risk-Free Fit Guarantee. Submit the requested information and a photo or two of your application (front door, slider, etc.). Our trained experts will review your submission within 1 business day. If everything is copacetic, you will receive a verification for fit. If your product selection won’t work with your application, you will receive a response with new product recommendations or other options.
Moral of the story is, "Measure twice, order once!". In the rare event that a Zabitat expert gets it wrong you are guaranteed a full refund or an exchange if the proper size unit is available, and return shipping fees are on us. *Please note, we are unable to guarantee a fit for arch (rounded) glass.
Specifications
Specifications
- Category: Decorative Door Glass
- Glass Shape: Rectangle
- Glass Size: 22 in. x 64 in.
- Glass Style: Contemporary
- Door Thickness: 1-3/4 in.
- Door Cut-Out Dimensions: 23 in. x 65 in.
- Frame Kit Size: 24 in. x 66 in.
- Frame Light Pattern: 1 Light
- Frame Type: Severe Weather Aluminum
- Light Pattern: 1 Light
- Glass Panel Thickness: 1 Inch
- Impact Resistant: Yes
- Manufacturer: ODL, Inc.
- Privacy Rating: Low
- Tempered Safety Glass: Yes
- Product Weight (lbs.): 60
- Warranty: 20 Year Glass Seal Warranty
