SKU:
33015438

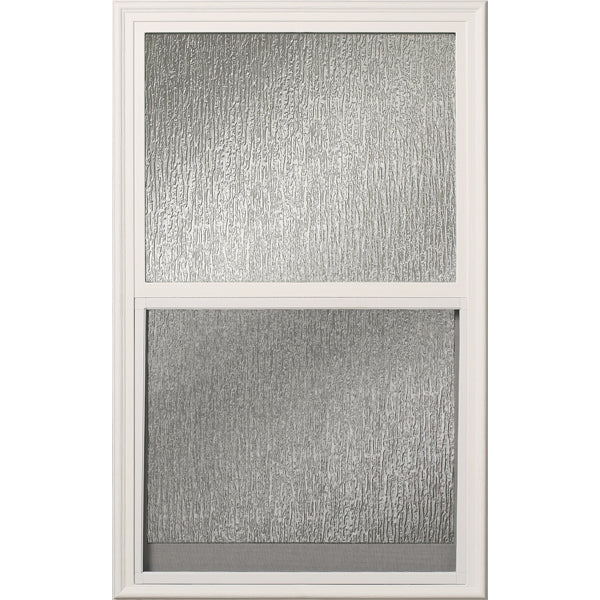

ODL Venting Low-E Door Glass - Textured Rain - 22" x 38" Frame Kit
$275.11
Unit price
/
Unavailable
22" x 38"
Typically ships in 7-10 business days
Highlights
Highlights
• Perfect for side entry and back patio doors
• Energy Efficient Low-E Rainglass Privacy Glass
• Tempered Safety Glass
• Double Pane Glass
• Thermally sealed, air and water tight.
• Energy Efficient Low-E Rainglass Privacy Glass
• Tempered Safety Glass
• Double Pane Glass
• Thermally sealed, air and water tight.
ODL Venting Low-E Door Glass - Textured Rain - 22" x 38" ...
$275.11
Unit price
/
Unavailable
Description
Description
Venting Windows
Keep air flowing with venting windows. Vents let you enjoy warm breezes when open, while shutting out cold wind and rain when closed. Venting windows are available in clear and privacy glass and with or without grilles. The UV-resistant frame keeps its appearance, and the removable screen makes cleaning easy. You also have options for where to place the vent latch on the frame. Clear Low-E glass venting windows are available, which help reduce air conditioning costs in the summer, heat loss in the winter, and fabric fading year round.

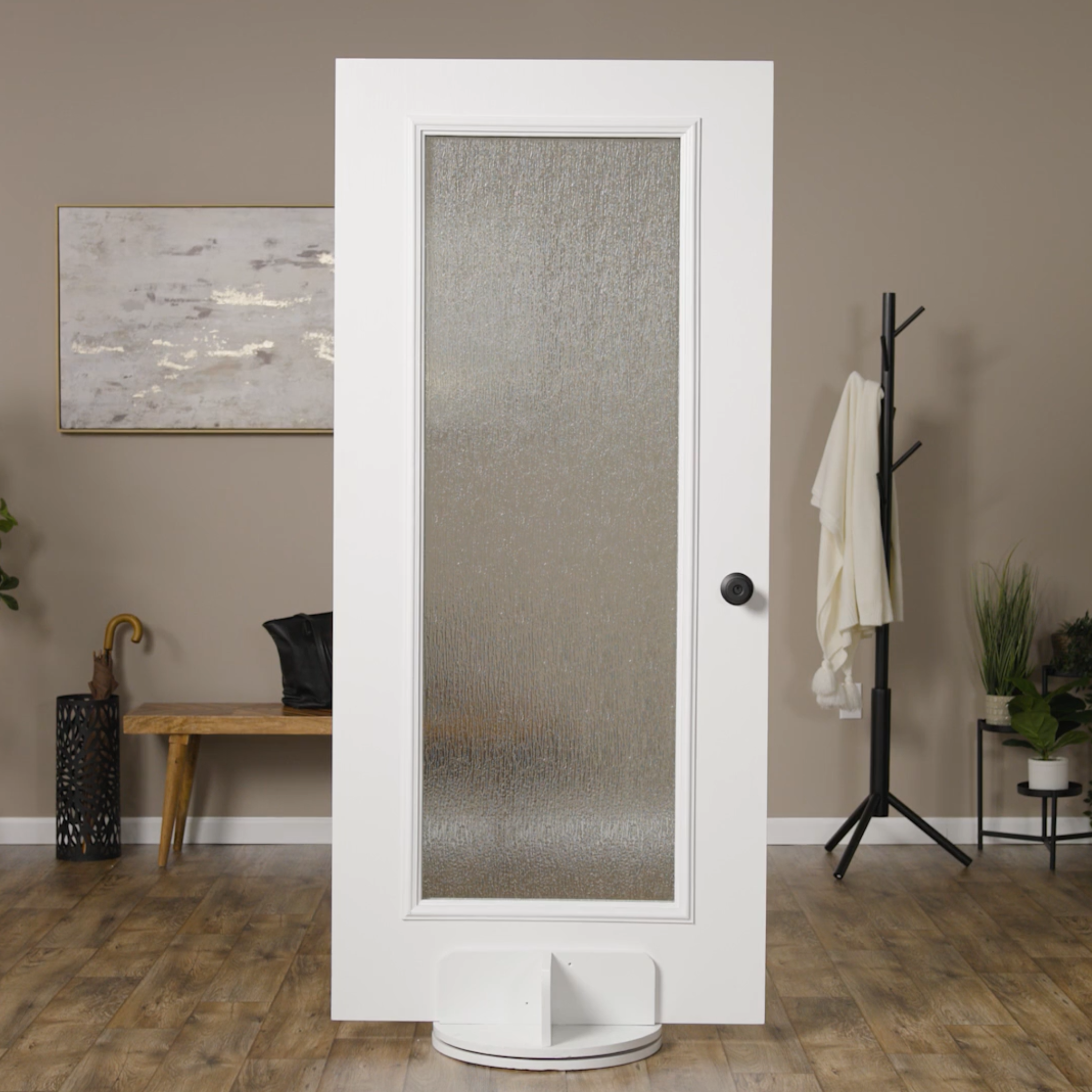

Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” and 30” (+/- 0.75”)
Door Height: 6’8” and 7’0” (+/- 0.75”)
Frame Kit Width: 22” (+/- 0.25”)
Frame Kit Height: 38” (+/- 0.25”)
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 30” wide doors (+/- 0.75”)
Door Height: 6’8” and 7’0” doors (+/- 0.75”)
Door Thickness: 1.75”
Door Panel: 6 Panel Door and Flush Door
Door Panel Width: 21” (+/- 0.5”)
Door Panel Height: 37” (+/- 0.5”)
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Half Light
Keep air flowing with venting windows. Vents let you enjoy warm breezes when open, while shutting out cold wind and rain when closed. Venting windows are available in clear and privacy glass and with or without grilles. The UV-resistant frame keeps its appearance, and the removable screen makes cleaning easy. You also have options for where to place the vent latch on the frame. Clear Low-E glass venting windows are available, which help reduce air conditioning costs in the summer, heat loss in the winter, and fabric fading year round.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” and 30” (+/- 0.75”)
Door Height: 6’8” and 7’0” (+/- 0.75”)
Frame Kit Width: 22” (+/- 0.25”)
Frame Kit Height: 38” (+/- 0.25”)
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 30” wide doors (+/- 0.75”)
Door Height: 6’8” and 7’0” doors (+/- 0.75”)
Door Thickness: 1.75”
Door Panel: 6 Panel Door and Flush Door
Door Panel Width: 21” (+/- 0.5”)
Door Panel Height: 37” (+/- 0.5”)
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Half Light
+ Read More
Guaranteed Fit Program
Guaranteed Fit Program
In a perfect world, everything fits right – the first time. You can achieve this enlightened state of mind with Zabitat’s Risk-Free Fit Guarantee. Submit the requested information and a photo or two of your application (front door, slider, etc.). Our trained experts will review your submission within 1 business day. If everything is copacetic, you will receive a verification for fit. If your product selection won’t work with your application, you will receive a response with new product recommendations or other options.
Moral of the story is, "Measure twice, order once!". In the rare event that a Zabitat expert gets it wrong you are guaranteed a full refund or an exchange if the proper size unit is available, and return shipping fees are on us. *Please note, we are unable to guarantee a fit for arch (rounded) glass.
Specifications
Specifications
- Frame Type: Standard High Performance Plastic
- Door Cut-Out Dimensions: 21 in. x 37 in.
- Energy Efficient: Yes
- Frame Kit Size: 22 in. x 38 in.
- Glass Insulation: Double Pane
- Light Pattern: 1 Light
- Impact Resistant: No
- Glass Panel Thickness: 1 Inch
- Manufacturer: ODL, Inc.
- Privacy Rating: 9
- Tempered Safety Glass: Yes
- Product Weight (lbs.): 25
- Warranty: 20 Year Glass Seal Warranty
- Screen Dimensions: 21-1/4 in. x 16-1/8 in. x 3/8 in.
- Category: Venting Windows Door Glass
- Glass Shape: Rectangle
- Glass Size: 20 in. x 36 in.
- Glass Type: Venting Windows
- Door Thickness: 1-3/4 in.
