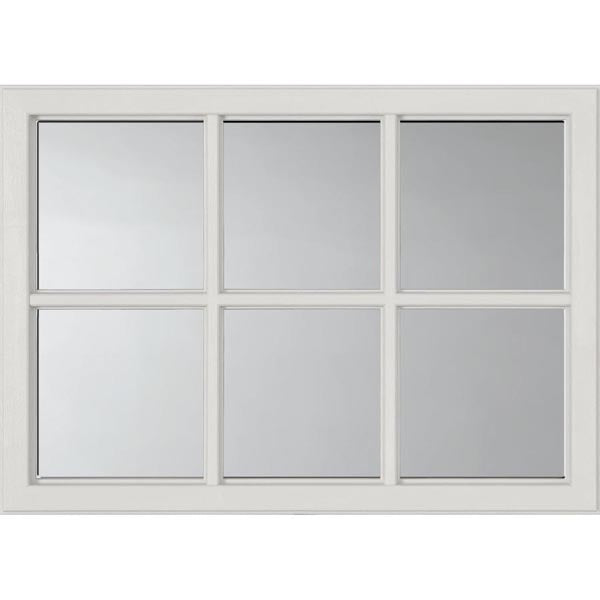

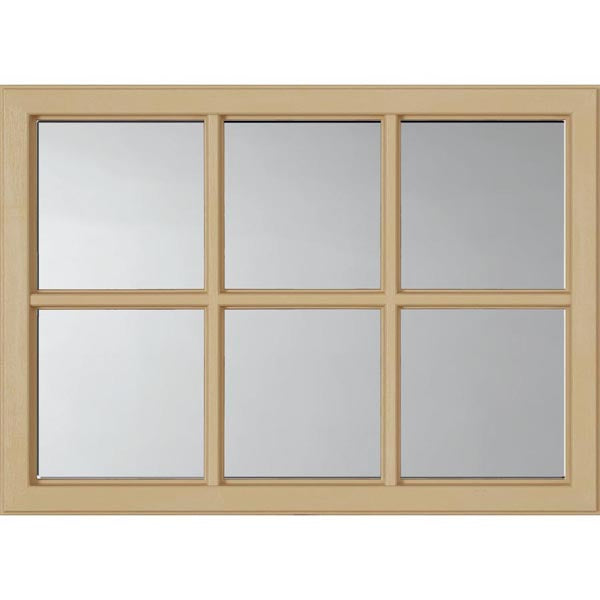

ODL Clear Low-E Door Glass - 6 Light - 1/2 Simulated Divided Light - 24" x 17.25" Craftsman Frame Kit
$278.94
Unit price
/
Unavailable
24" x 17"
Typically ships in 7-10 business days
Highlights
Highlights
• Perfect for side entry and back patio doors.
• Provides the look of a true old style divided glass door.
• Energy Efficient Low-E Glass.
• 1/2 Simulated Divided Light
• Provides the look of a true old style divided glass door.
• Energy Efficient Low-E Glass.
• 1/2 Simulated Divided Light
ODL Clear Low-E Door Glass - 6 Light - 1/2 Simulated Divided Light ...
$278.94
Unit price
/
Unavailable
Description
Description
Clear Door Glass with Simulated Divided Light
You are sure to find a style that works for your entry door. Our maintenance-free, mill finish 1/2 grille between clear glass with external grilles provide the look of a true old style divided glass door. Finish choices are also offered.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” and 30” (+/- 0.75”)
Door Height: 6’8” and 7’0” (+/- 0.75”)
Door Thickness: 1.75”
Frame Kit Width: 24” (+/- 0.25”)
Frame Kit Height: 17.25” (+/- 0.25”)
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” (+/- 0.75”)
Door Height: 6’8” and 7’0” (+/- 0.75”)
Door Thickness: 1.75”
Door Panel: 3 Panel Door and 4 Panel Door
Door Panel Width: 16.25” (+/- 0.5”)
Door Panel Height: 23” (+/- 0.5”)
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Craftsman Door Light
You are sure to find a style that works for your entry door. Our maintenance-free, mill finish 1/2 grille between clear glass with external grilles provide the look of a true old style divided glass door. Finish choices are also offered.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” and 30” (+/- 0.75”)
Door Height: 6’8” and 7’0” (+/- 0.75”)
Door Thickness: 1.75”
Frame Kit Width: 24” (+/- 0.25”)
Frame Kit Height: 17.25” (+/- 0.25”)
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” (+/- 0.75”)
Door Height: 6’8” and 7’0” (+/- 0.75”)
Door Thickness: 1.75”
Door Panel: 3 Panel Door and 4 Panel Door
Door Panel Width: 16.25” (+/- 0.5”)
Door Panel Height: 23” (+/- 0.5”)
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Craftsman Door Light
+ Read More
Guaranteed Fit Program
Guaranteed Fit Program
In a perfect world, everything fits right – the first time. You can achieve this enlightened state of mind with Zabitat’s Risk-Free Fit Guarantee. Submit the requested information and a photo or two of your application (front door, slider, etc.). Our trained experts will review your submission within 1 business day. If everything is copacetic, you will receive a verification for fit. If your product selection won’t work with your application, you will receive a response with new product recommendations or other options.
Moral of the story is, "Measure twice, order once!". In the rare event that a Zabitat expert gets it wrong you are guaranteed a full refund or an exchange if the proper size unit is available, and return shipping fees are on us. *Please note, we are unable to guarantee a fit for arch (rounded) glass.
Specifications
Specifications
- Frame Type: Craftsman Architectural Plastic
- Manufacturer: ODL, Inc.
- Category: Clear Door Glass
- Grille Size: 1/2"
- Grille Type: Simulated Divided Light
- Glass Insulation: Double Pane
- Glass Type: Clear Glass
- Door Cut-Out Dimensions: 23 in. x 16.25 in.
- Glass Size: 22.000 in. x 15.250 in.
- Door Thickness: 1-3/4 in.
- Frame Kit Size: 24 in. x 17.25 in.
- Energy Efficient: Yes
- Impact Resistant: No
- Frame Light Pattern: 6 Light
- Tempered Safety Glass: Yes
- STC Rating: 28
- Privacy Rating: 1
- Glass Panel Thickness: 1 Inch
- Product Weight (lbs.): 12
- Light Pattern: 6 Light
- Glass Shape: Rectangle
