SKU:
33011854

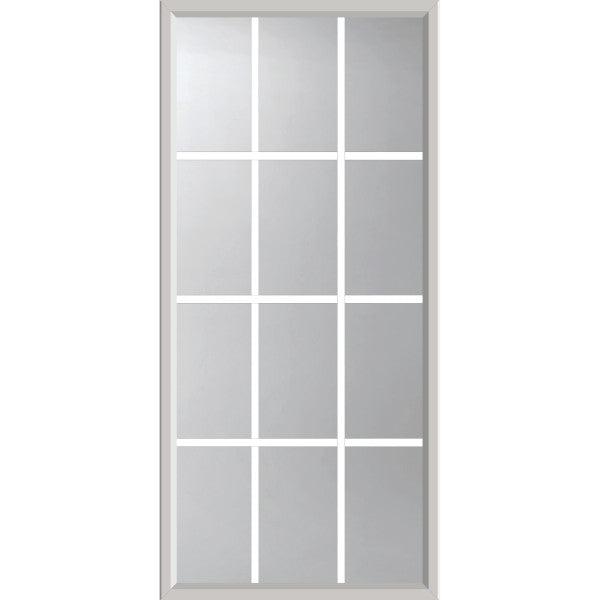

ODL Clear Door Glass - 12 Light - 5/8 Internal Grille - 24" x 50" Flat Profile Frame Kit
$321.57
Unit price
/
Unavailable
24" x 50"
Typically ships in 7-10 business days
Highlights
Highlights
• Our new modern flat frame provides a clean low-profile look.
• Our screw-together flat frames combine a modern flat profile sleek look with the ease of installation and repairability of traditional screw together frames. Includes screws and screw covers (caps or plugs).
• Tired of cleaning door glass with small individual panes? Save time with internal muntins with a single continuous surface and no exposed grilles to gather dust and dirt.
• Perfect for side entry and back patio doors.
• Thermally sealed, air and water tight tempered safety glass.
• 5/8 in. internal grille.
• Our screw-together flat frames combine a modern flat profile sleek look with the ease of installation and repairability of traditional screw together frames. Includes screws and screw covers (caps or plugs).
• Tired of cleaning door glass with small individual panes? Save time with internal muntins with a single continuous surface and no exposed grilles to gather dust and dirt.
• Perfect for side entry and back patio doors.
• Thermally sealed, air and water tight tempered safety glass.
• 5/8 in. internal grille.
ODL Clear Door Glass - 12 Light - 5/8 Internal Grille - 24" x ...
$321.57
Unit price
/
Unavailable
Description
Description
Clear Door Glass with Grilles

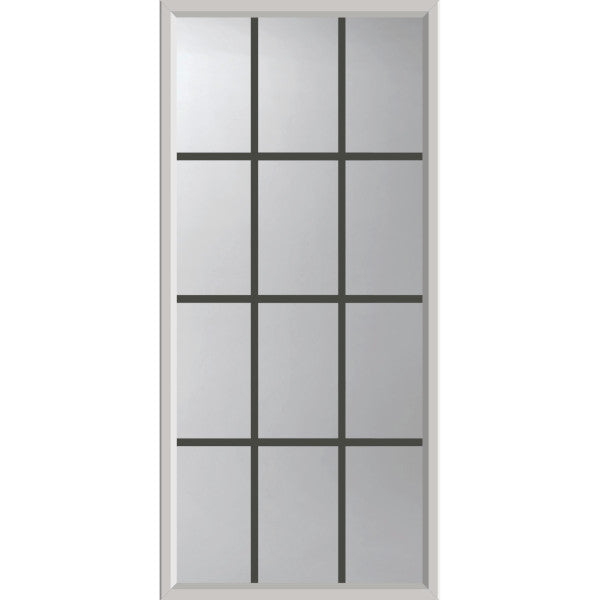

You are sure to find a style that works for your entry door from our maintenance-free, 5/8 internal grille selection with clear glass. Finish choices are also offered.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel and 1 door glass frame set. The door glass frame set consists of 1 inner and 1 outer high performance molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides side window and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" and 30" (+/- 0.75")
Door Height**: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Frame Kit Width: 24" (+/- 0.25")
Frame Kit Height: 50" (+/- 0.25")
**This kit will work for an 8'0" door with an existing frame measuring 24"x 50".
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" (+/- 0.75")
Door Height*: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Door Panel: 8 Panel Door, 3 Panel door and 2 Panel Door
Door Panel Width: 23" (+/- 0.5")
Door Panel Height: 49" (+/- 0.5")
*This kit will work with a 6 panel, 8'0" door for adding glass.
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Three Quarter Light (6'8" doors)
Half Light (8'0" doors)
You are sure to find a style that works for your entry door from our maintenance-free, 5/8 internal grille selection with clear glass. Finish choices are also offered.
Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel and 1 door glass frame set. The door glass frame set consists of 1 inner and 1 outer high performance molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides side window and frame kit dimensions:
Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" and 30" (+/- 0.75")
Door Height**: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Frame Kit Width: 24" (+/- 0.25")
Frame Kit Height: 50" (+/- 0.25")
**This kit will work for an 8'0" door with an existing frame measuring 24"x 50".
Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36", 34", 32" (+/- 0.75")
Door Height*: 6'8" and 7'0" (+/- 0.75")
Door Thickness: 1.75"
Door Panel: 8 Panel Door, 3 Panel door and 2 Panel Door
Door Panel Width: 23" (+/- 0.5")
Door Panel Height: 49" (+/- 0.5")
*This kit will work with a 6 panel, 8'0" door for adding glass.
Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.
Typical Industry Names for the Kit
Three Quarter Light (6'8" doors)
Half Light (8'0" doors)
+ Read More
Guaranteed Fit Program
Guaranteed Fit Program
In a perfect world, everything fits right – the first time. You can achieve this enlightened state of mind with Zabitat’s Risk-Free Fit Guarantee. Submit the requested information and a photo or two of your application (front door, slider, etc.). Our trained experts will review your submission within 1 business day. If everything is copacetic, you will receive a verification for fit. If your product selection won’t work with your application, you will receive a response with new product recommendations or other options.
Moral of the story is, "Measure twice, order once!". In the rare event that a Zabitat expert gets it wrong you are guaranteed a full refund or an exchange if the proper size unit is available, and return shipping fees are on us. *Please note, we are unable to guarantee a fit for arch (rounded) glass.
Specifications
Specifications
- Manufacturer: ODL, Inc.
- Category: Clear Door Glass
- Frame Type: Flat-Profile Plastic
- Grille Size: 5/8"
- Grille Type: Standard
- Glass Insulation: Double Pane
- Glass Type: Clear Glass
- Door Cut-Out Dimensions: 23 in. x 49 in.
- Door Thickness: 1-3/4 in.
- Glass Size: 22 in. x 48 in.
- Frame Kit Size: 24 in. x 50 in.
- Energy Efficient: No
- Impact Resistant: No
- Tempered Safety Glass: Yes
- Frame Light Pattern: 1 Light
- STC Rating: 29
- Privacy Rating: 1
- Glass Panel Thickness: 1 Inch
- Product Weight (lbs.): 32
- Light Pattern: 12 Light
- Glass Shape: Rectangle
