Western Reflections Crosslines Door Glass - 24" x 50" Frame Kit

Crosslines Door Glass

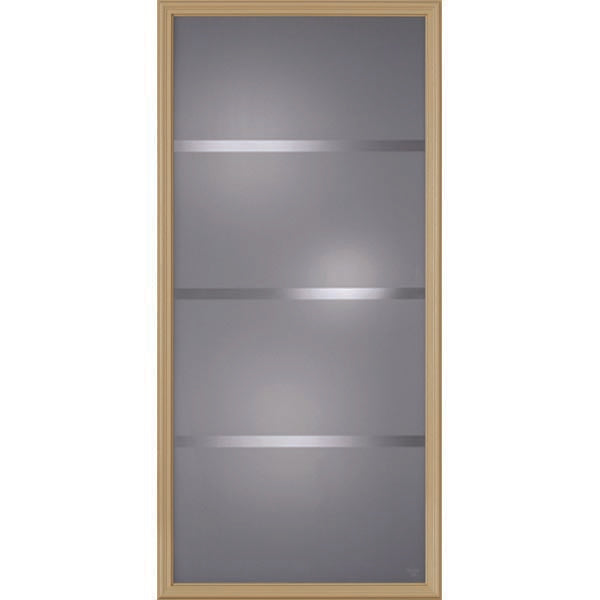

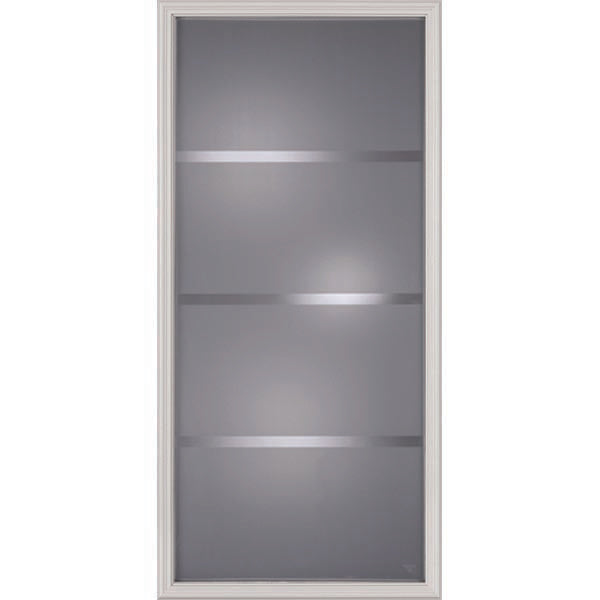

Express your appreciation for Contemporary design with a Crosslines doorglass. Four clear strips etched through frosted glass give your home the fresh, clean look you desire. This Contemporary Collection selection provides a medium-high level of privacy.

Door Glass with Frame Kit
This door glass kit is designed to fit a wide variety of exterior doors manufactured by Therma Tru, Masonite, Jeld-Wen, PlastPro and many others. This kit can be used to either replace existing glass in a door, or to add glass to a door. This kit contains 1 insulated glass panel, 1 door glass frame set, 1 pack of specially designed screws, and 1 pack of screw covers. The door glass frame set consists of 1 inner and 1 outer high performance, molded plastic frame. The outer frame has an air and water tight, factory applied seal that bonds the frame to the glass. Before ordering, ensure that the existing glass is held in place by raised molding. The guide below provides door glass and frame kit dimensions:

Replacing Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” and 30” (+/- 0.75”)
Door Height**: 6’8” and 7’0” (+/- 0.75”)
Door Thickness: 1.75”
Frame Kit Width: 24” (+/- 0.25”)
Frame Kit Height: 50” (+/- 0.25”)
**This kit will work for an 8’0” door with an existing frame measuring 24”x 50”.


Adding Glass
Door Material: Steel or Fiberglass
Door Width: 36”, 34”, 32” (+/- 0.75”)
Door Height*: 6’8” and 7’0” (+/- 0.75”)
Door Thickness: 1.75”
Door Panel: 8 Panel Door, 3 Panel door and 2 Panel Door
Door Panel Width: 23” (+/- 0.5”)
Door Panel Height: 49” (+/- 0.5”)
*This kit will work with a 6 panel, 8’0” door for adding glass.

Please consult the Measurement Guide for any questions on identifying the correct size door, side window or door glass frame kit for your entry system.

Typical Industry Names for the Kit
Three Quarter Light (6’8” doors)
Half Light (8’0” doors)
